Coyote 10 qt. oil pan for Early Ford Bronco

Description

10qt. Coyote oil pan.

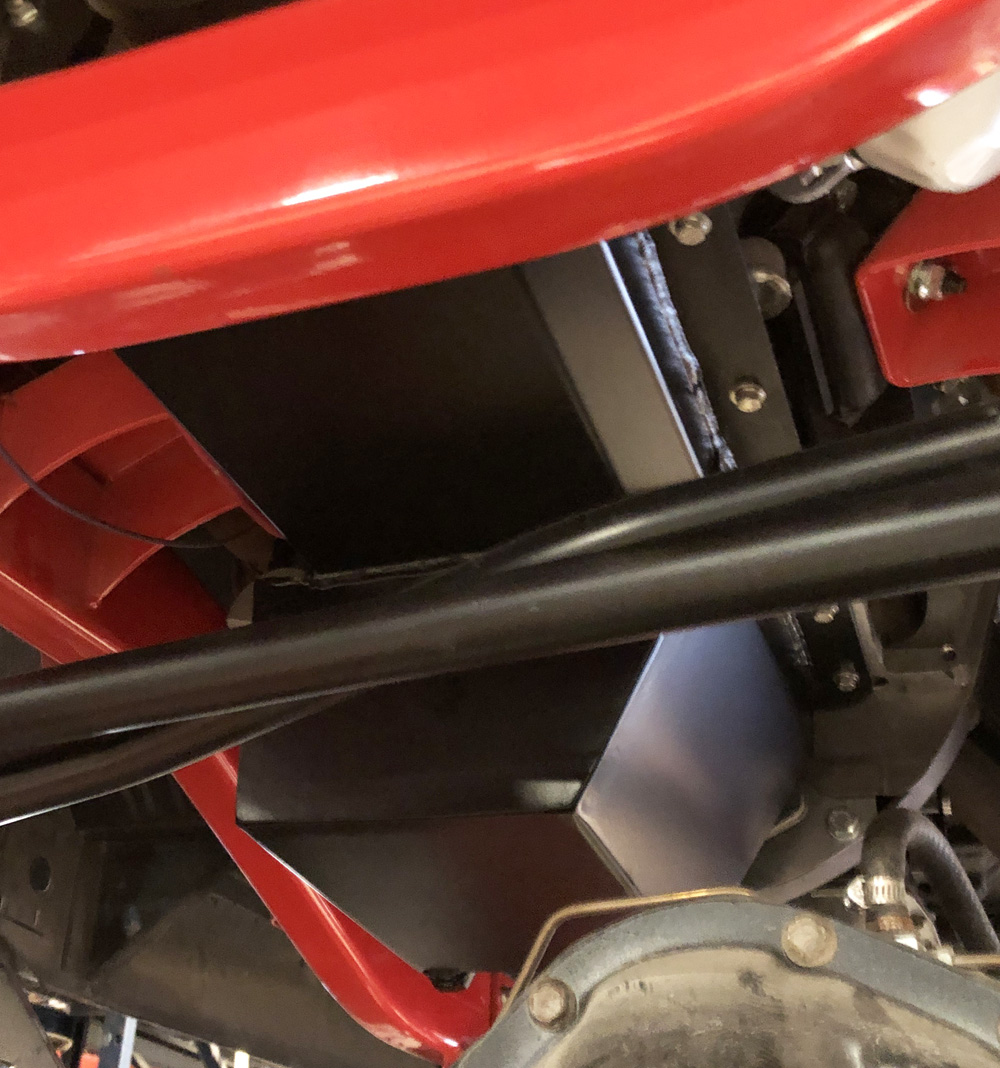

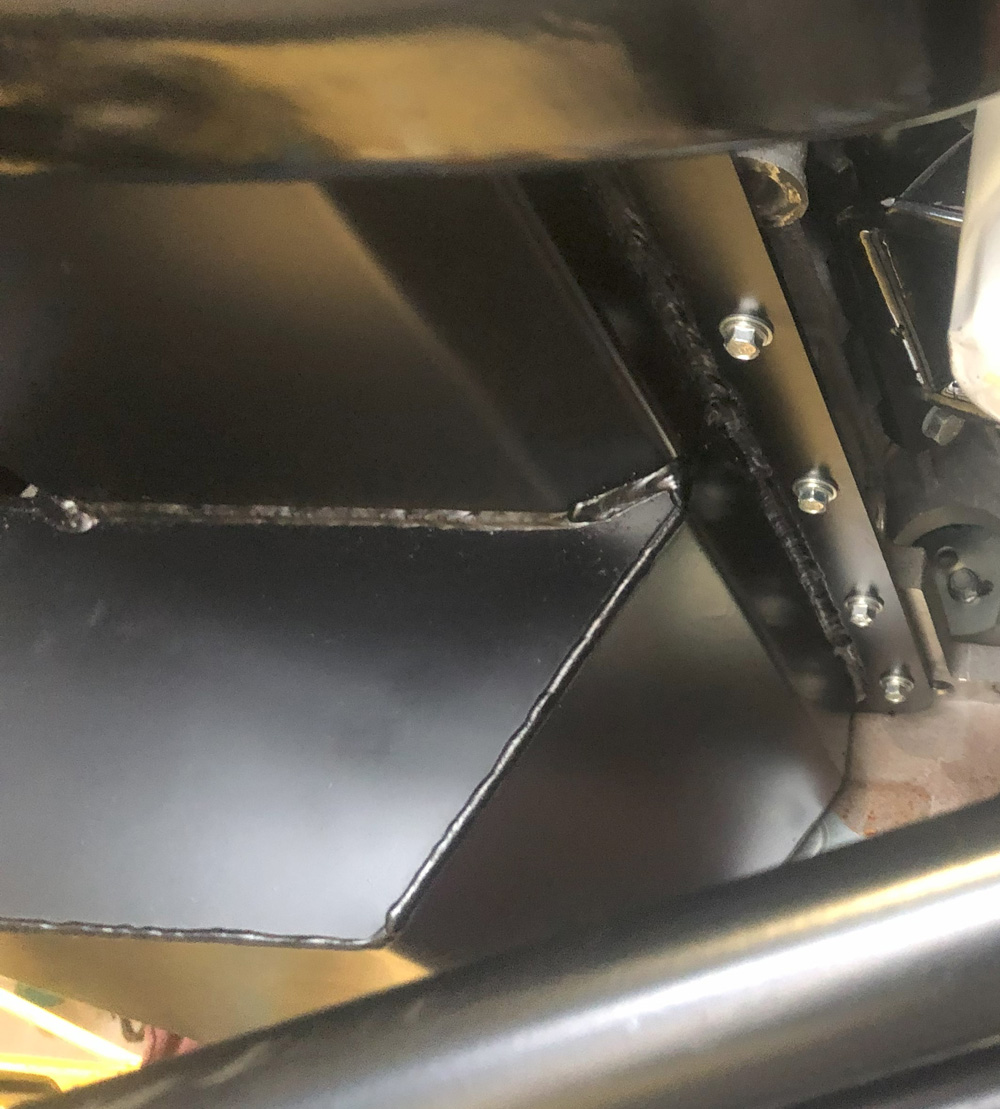

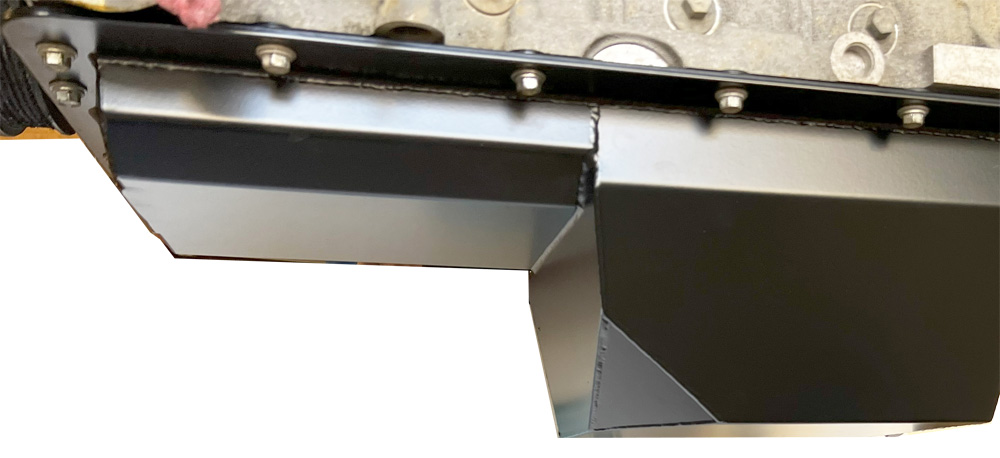

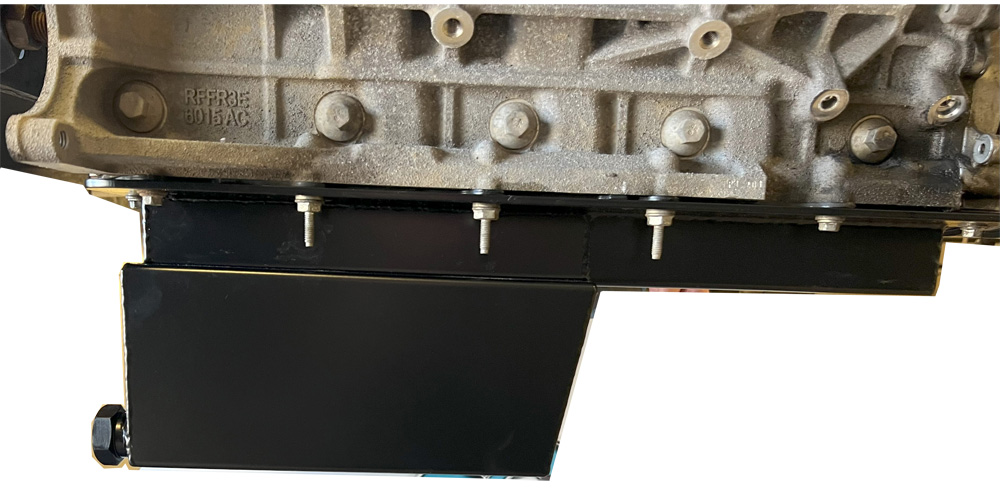

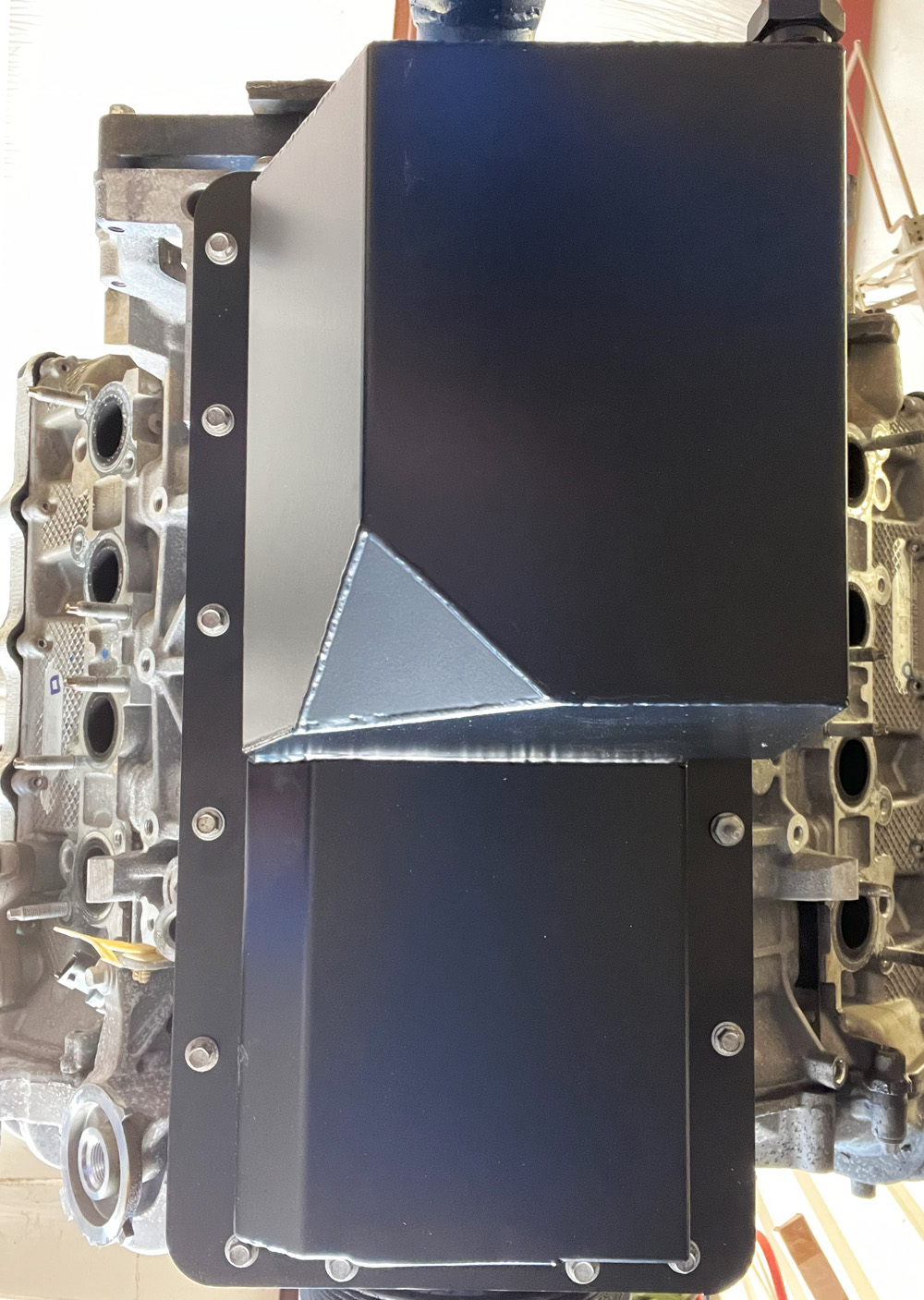

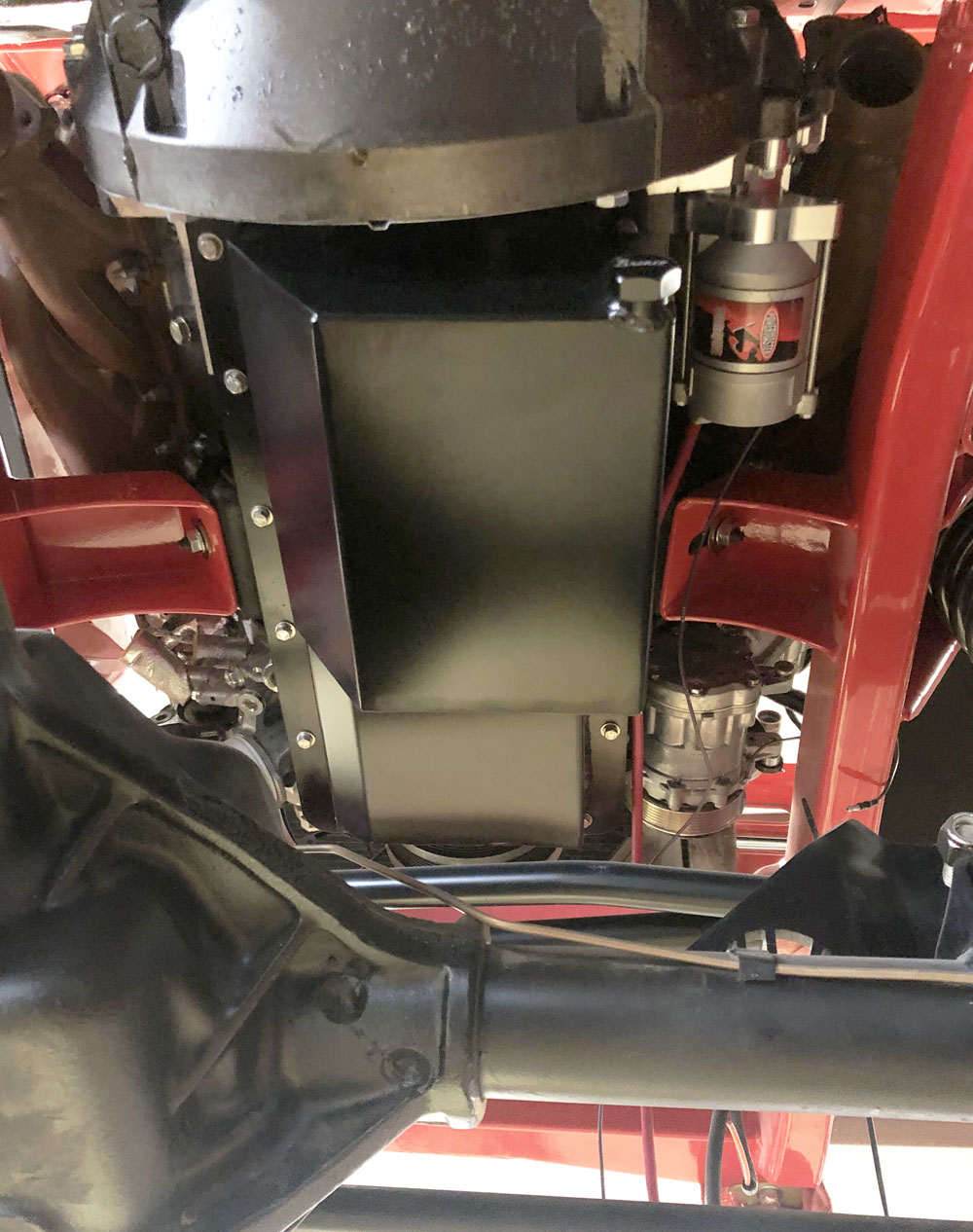

This pan allows you to use a lower suspension lift because we offset the can and put a steep angle on the diff side to give you more clearance while increasing the capacity to 10 qts, to make sure you don’t run out of oil under acceleration. When using this pan on a Gen 1,2 and 4 Coyote you retain the stock pick up tube and gasket. Great idea so if you have a warrantee issue it can not be blamed on aftermarket parts. Some aftermarket pans reduce the oil capacity and or use a different pick up tube which can cause oil starvation issues. *Gen 1 and 2 use 8 qts. Gen 3 is 10 qts. and Gen 4 is 9.5 qts. So our pan is larger than most of the stock pans while still clearing the diff.

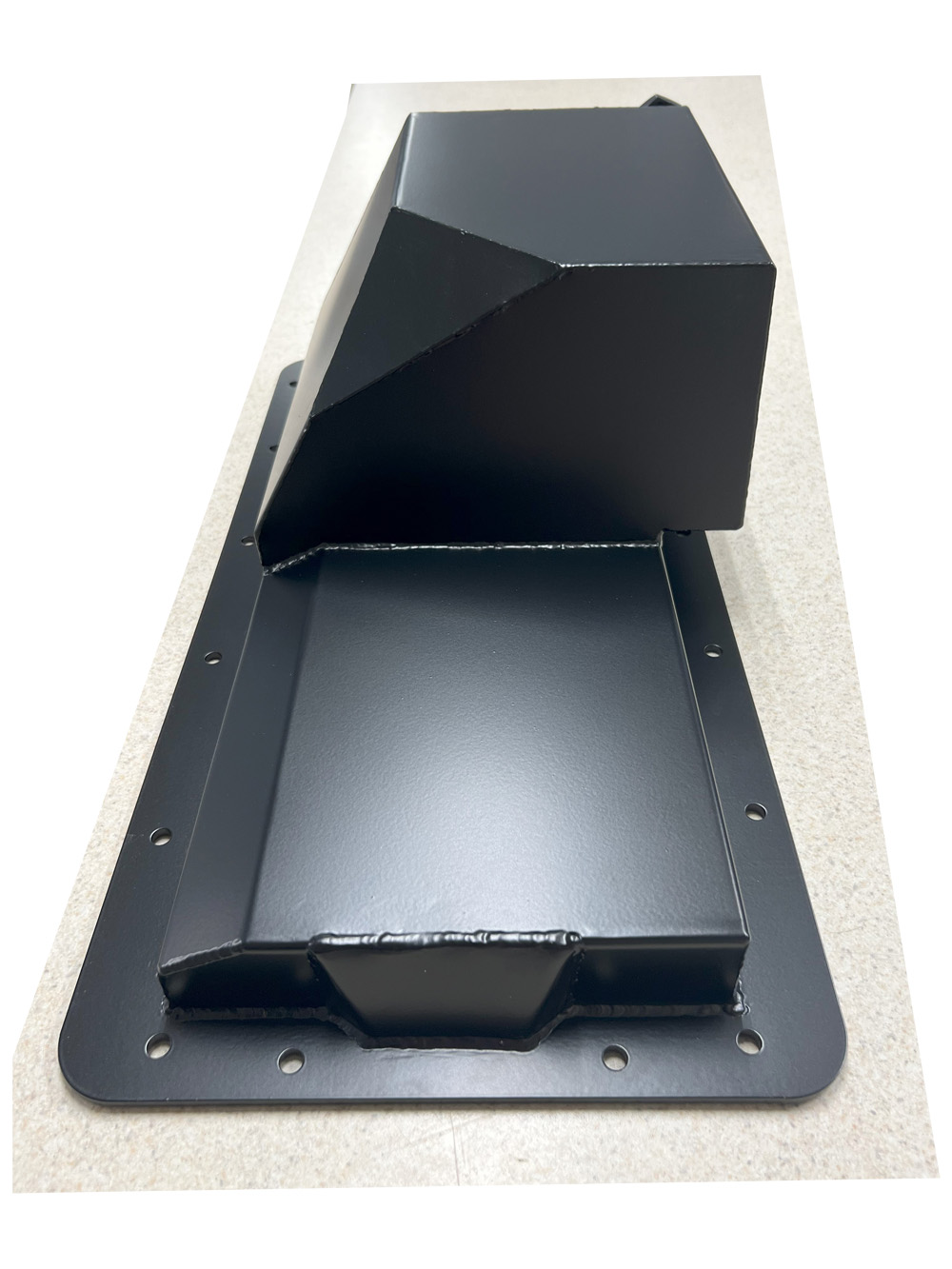

Our oil pan is made of steel and powder coated so it resembles a stock pan.

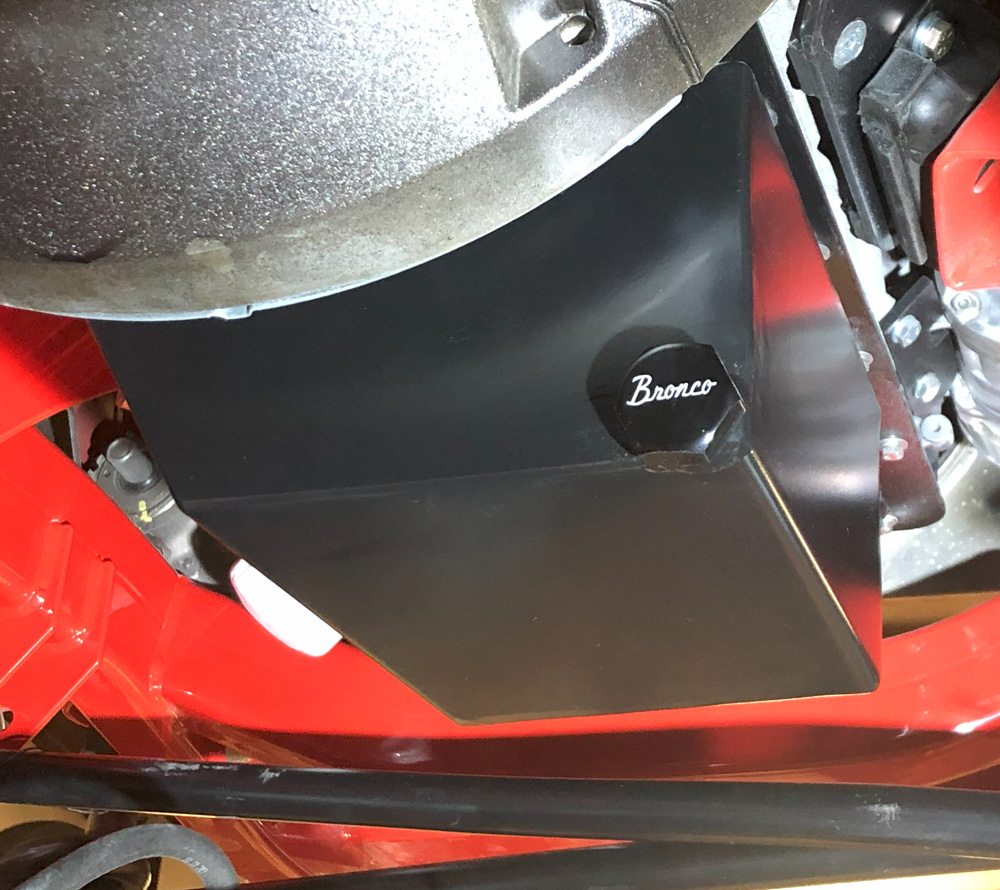

We also include a larger drain plug to remove the oil faster during an oil change. The plug is on the rear of the pan so it is protected and when draining the oil it will not run all over the front diff or steering linkage.

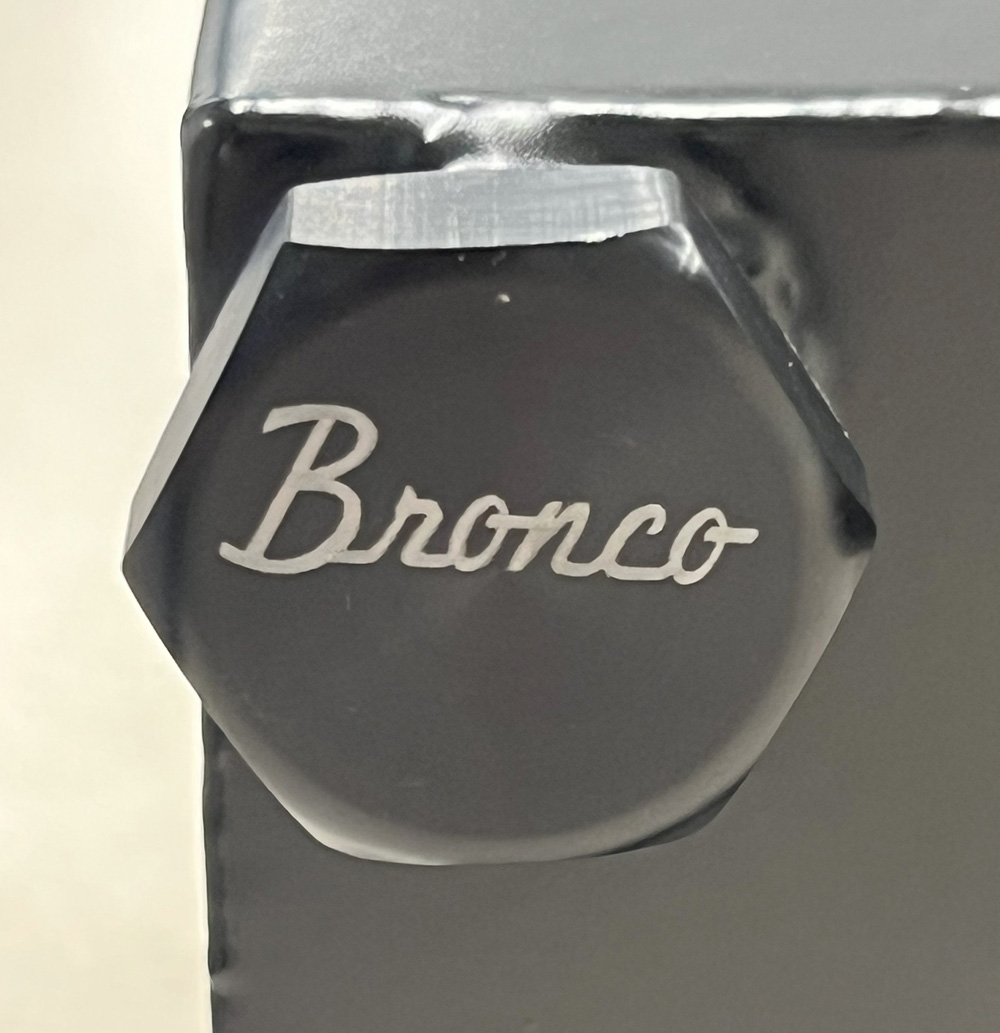

The provided plug is custom made with an integrated oring and magnet for keeping an eye on the health of your engine.

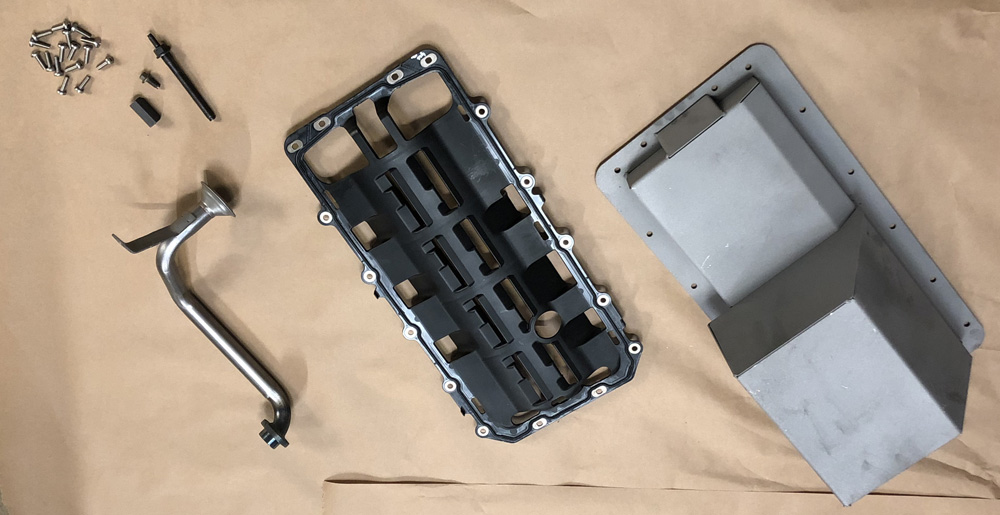

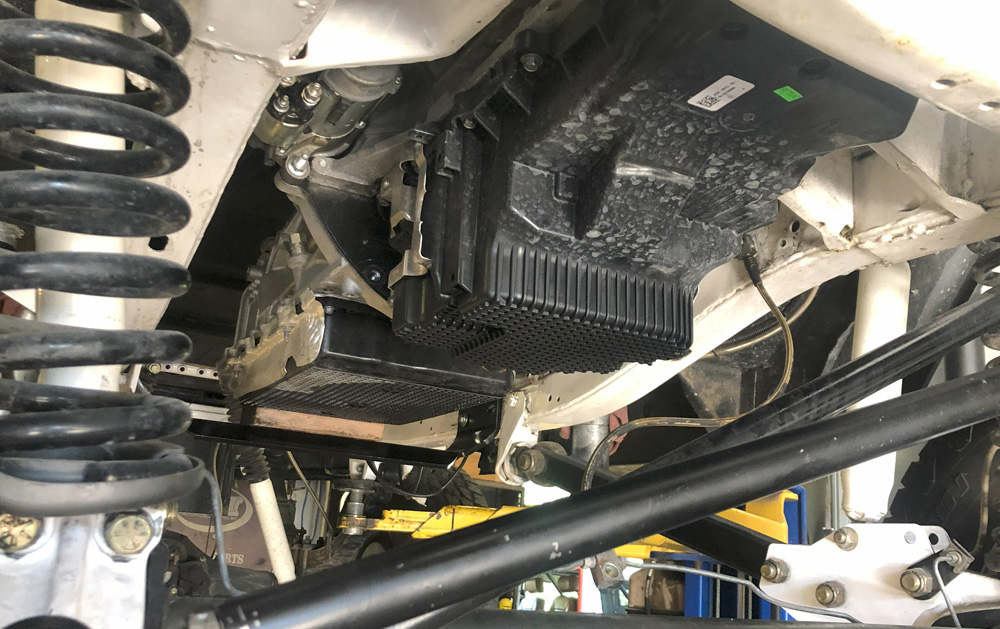

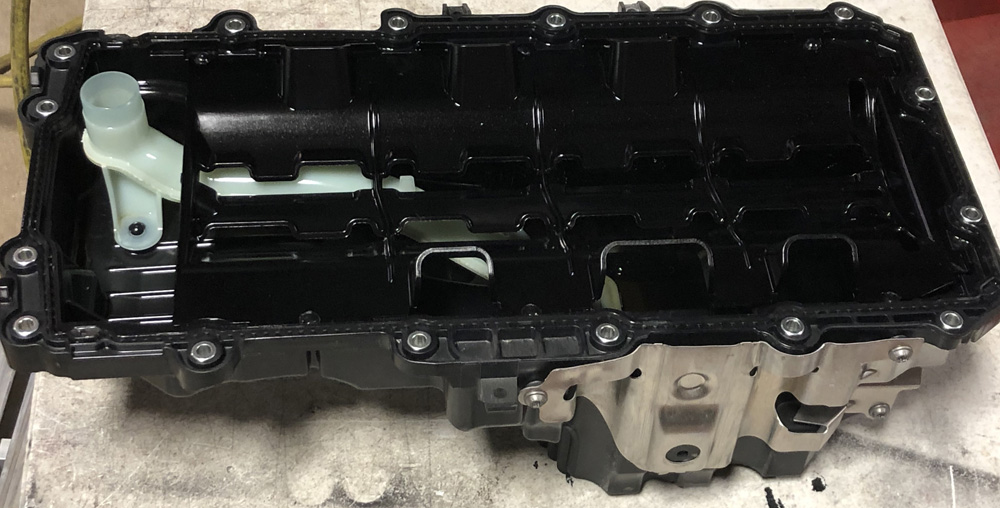

Because the Gen 3 engine used a plastic oil pan (integrated pick up tube and gasket) you will need the extra parts to make it work. Pick up tube, gasket and custom hardware.

*We measured the capacity of our pan so the oil is in the center of the crosshatching on the dipstick. While setting in a level frame with the transmission installed at the stock 5* slant.
